A/C Solutions Porsche 911 3.2 Carrera Complete Conversion Kit

Designed and engineered for the enthusiast, this conversion kit offers a complete, plug-and-play upgrade of the A/C system in the 1984-1989 911 3.2 Carrera to R134a using a new Denso compressor, CSF parallel flow condenser, R134a expansion valve, all new R134a lines (inside and out), and all the necessary supporting brackets. This upgrade will result in colder A/C vent temperatures, less strain on the engine, and a more efficient and durable A/C system.

What if my 911 didn't come factory with A/C?
Our products are designed to support factory A/C models; however, to fit them into non-A/C applications you will need to obtain a factory HVAC wiring harness, factory compressor manifolds, aluminum engine accessory bracket, evaporator, and factory HVAC box ("smugglers box") with sensors, control module, thermostat, etc. Additionally, we recommend replacing your OEM hardware with our A/C bracket and hardware kit.

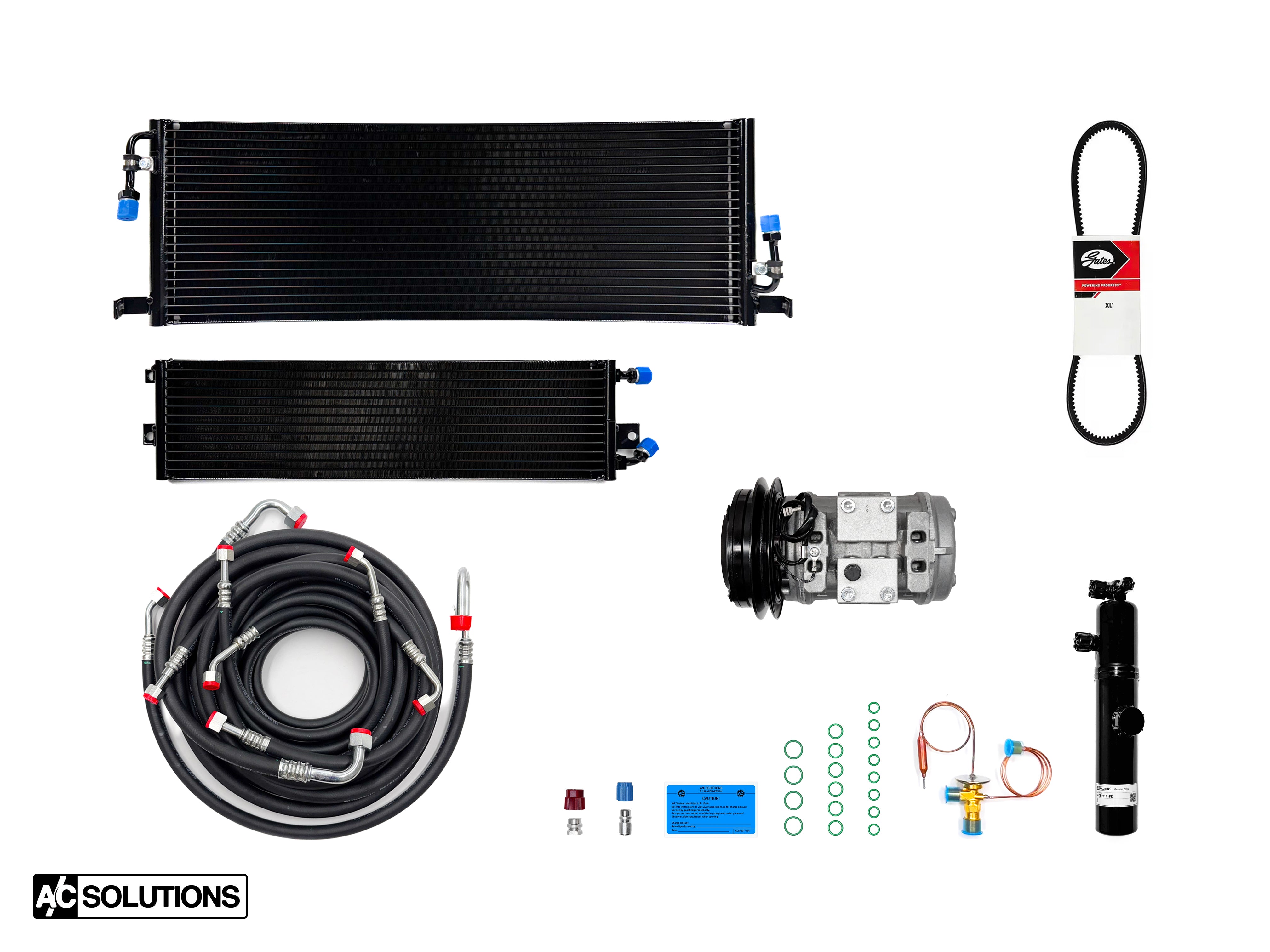

What's in the box?

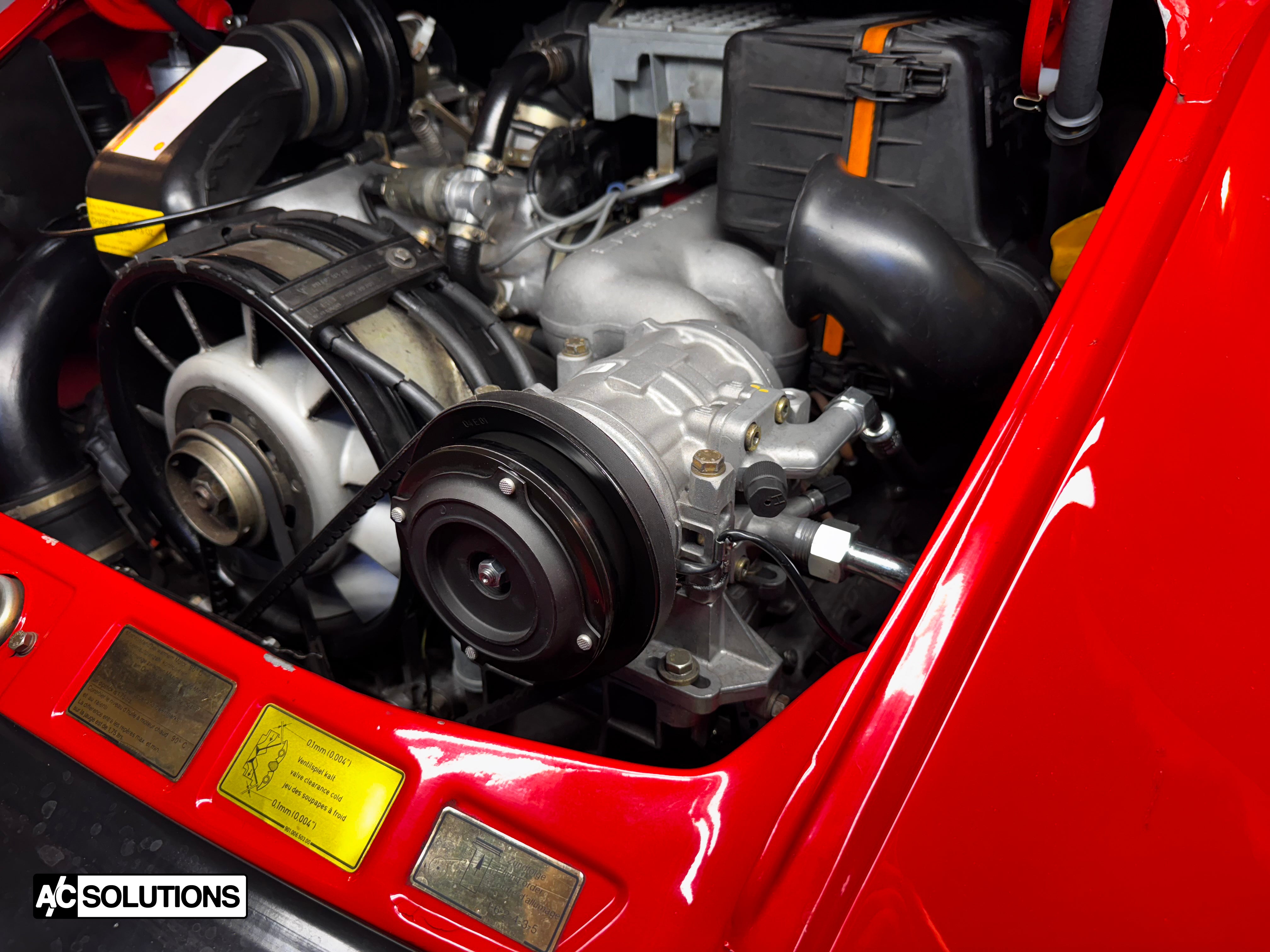

• Denso A/C compressor

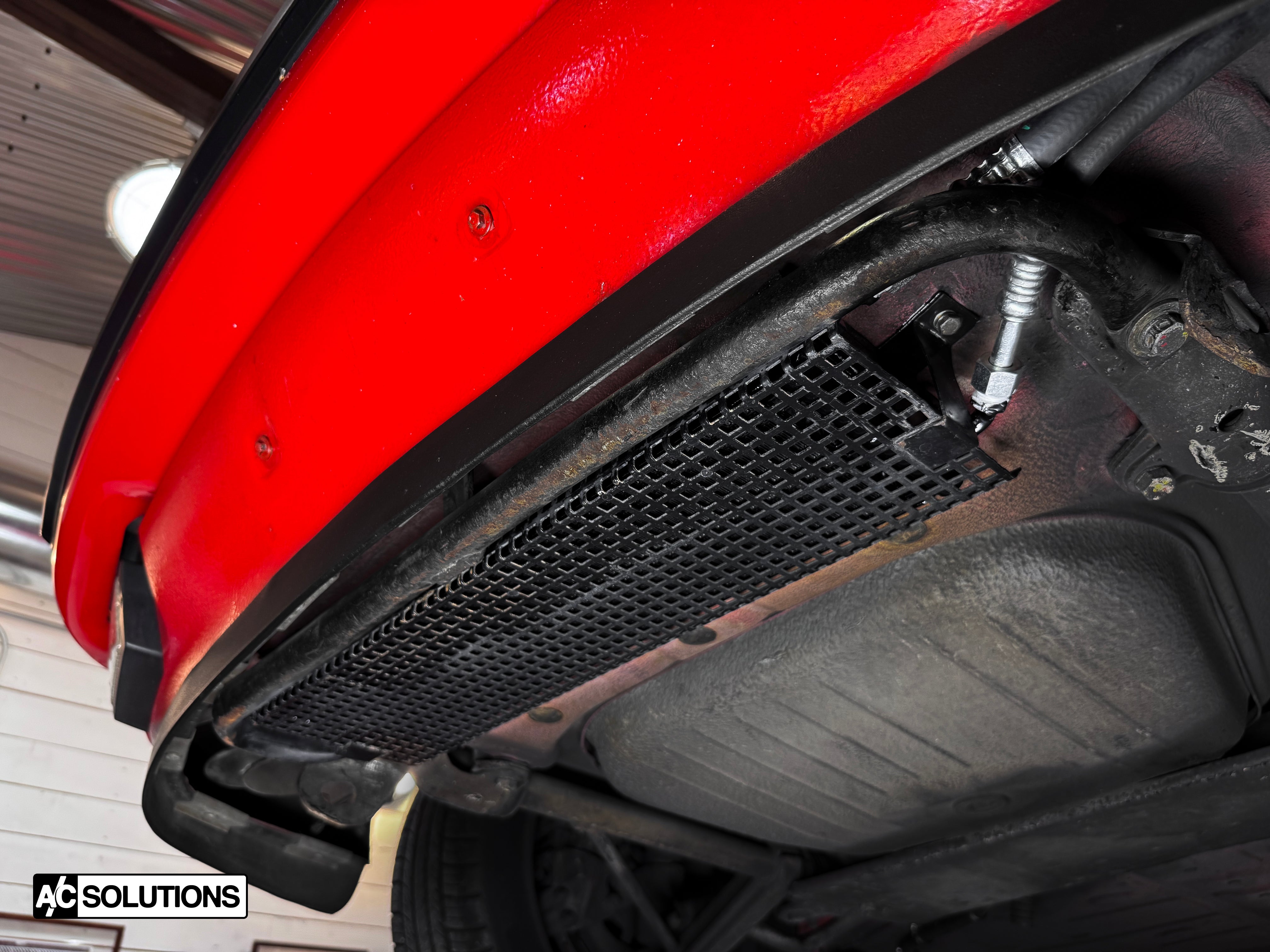

• A/C Solutions x CSF front parallel flow condenser

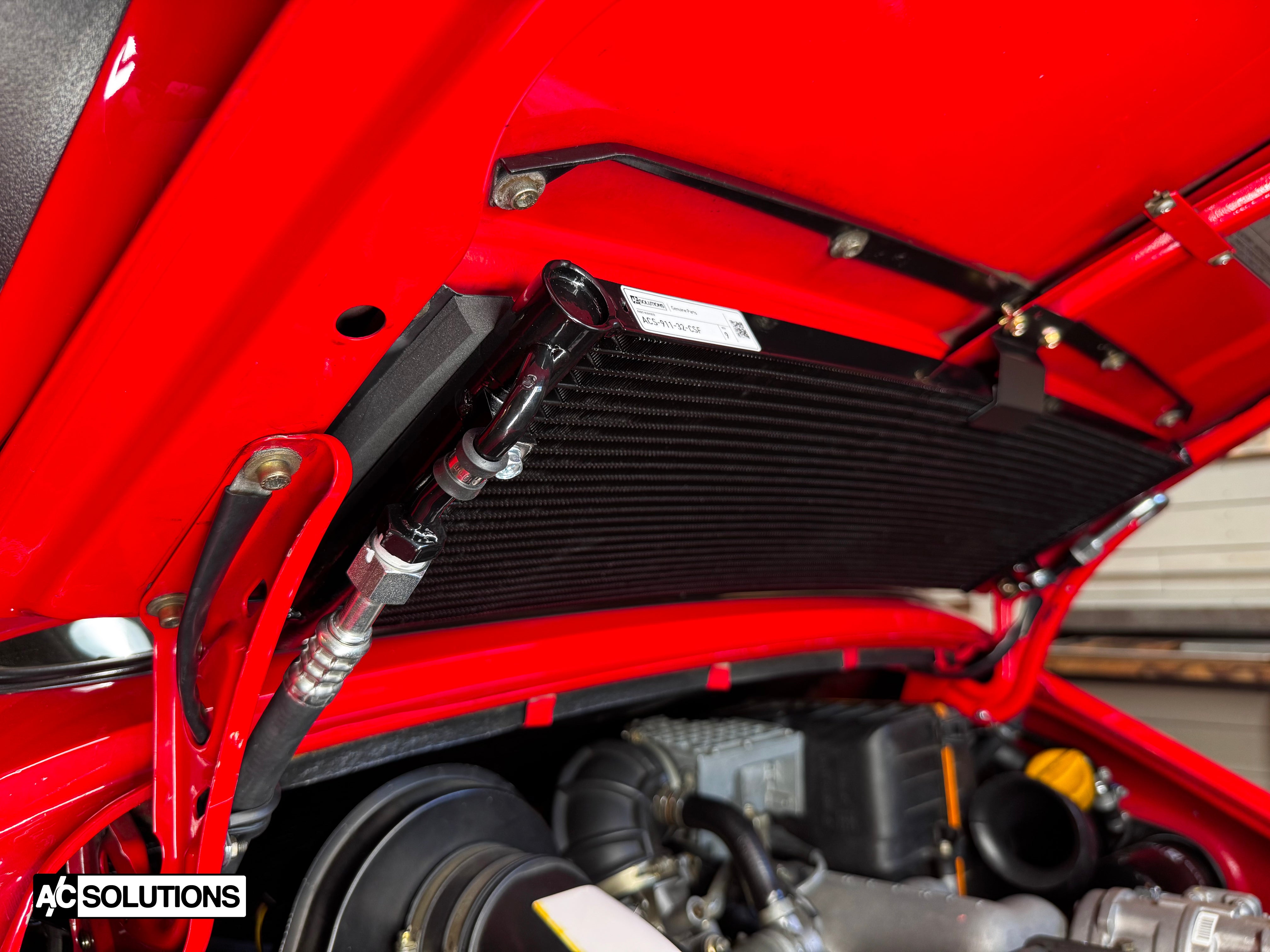

• A/C Solutions x CSF rear decklid parallel flow condenser
• Low-pressure suction line (evaporator to compressor)
• High-pressure discharge line (compressor to rear condenser)
• High-pressure discharge line (rear condenser to front condenser)
• High-pressure discharge line (front condenser to drier)

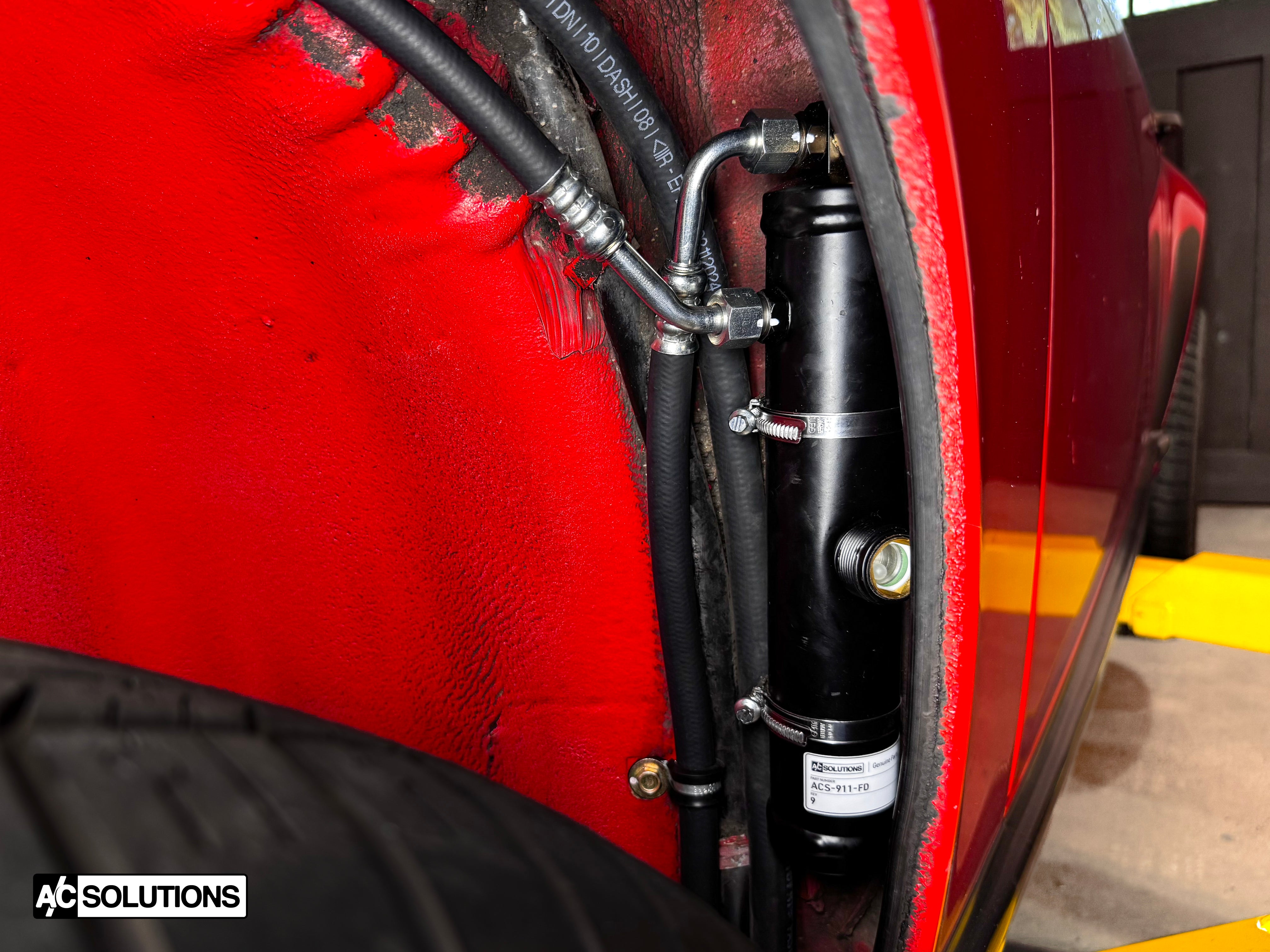

• High-pressure drier return line (drier to evaporator)
• OE R134a filter drier
• R134a expansion valve
• New v-belt

• R134a low and high-pressure service fittings
• Model specific R134a o-ring kit
• R134a retrofit label
• Misc. hardware
• Detailed installation instructions (coming soon)

Fitment notes:

• Compatible with LHD models with factory A/C only.
• Not compatible for models with rear wiper system.
• The A/C compressor does not come with manifolds - you will need to reuse your originals.
• For use with the following models: 1984-1989 Porsche 911 3.2 Carrera (all)


Cross reference part numbers: 91157314906, 911-573-149-06, 91157314903, 911-573-149-03, 91157315005, 911-573-150-05, 91157315003, 911-573-150-03, 91157315306, 911-573-153-06, 91157315305, 911-573-153-05, 91157315400, 911-573-154-00, 91157315403, 911-573-154-03, 91157315203, 911-573-152-03, 91157315205, 911-573-152-05, 91157313903, 911-573-139-03, 91157393903, 911-573-939-03, 91157392500, 911-573-925-00, 91157305704, 911-573-057-04, 91157305705, 911-573-057-05, 91157305703, 911-573-057-03, 91157305602, 911-573-056-02, 91157305603, 911-573-056-03, 930126021AX, 93012602101, 930-126-021-01, DENSO 471-0124, 4710124
